Accessories

Series 1100

With the Series 1100 you can mount up to six (6) panels of Auxiliary Inputs closer the the device under test. This reduces wire runs and minimizes clutter. Additionally, you can easily add additional capability with the Plug-n-Play benefit of the remote interface.

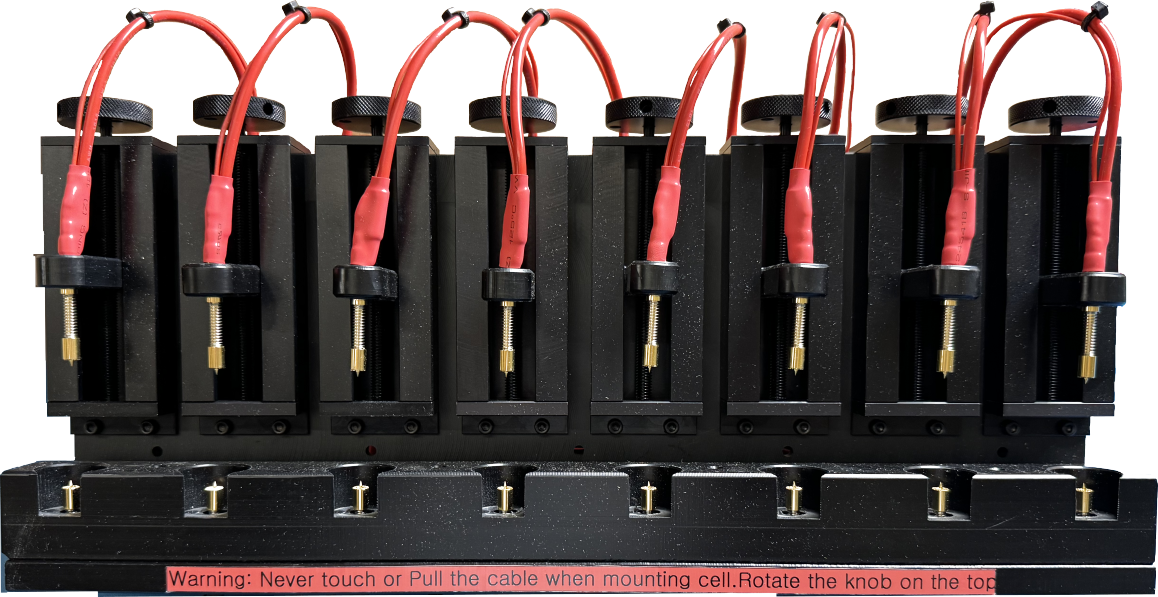

Adjustable Cylindrical Cell Holders

The adjustable cylindrical cell holder may be mounted on the cabinet’s interface or remotely. The cell holder is 8-positions per cell holder and is adjustable from button to 18650 cell sizes.

Molded Kelvin Cell Holder

The first and only true four-wire cell holders are available in a variety of sizes including: AAA, AA, C, D, 18650, 21700, and 9 Volt. These cell holders provide the most accurate measurements at the cell. Cell holders are mounted on a circuit board with either power pole or phoenix connectors and plug-in directly to the cabinet’s interface.

Coin/Button Cell Holder

The coin/button cell holder is adjustable for a variety of coin cell diameters. With a thumb screw terminal on one end and a spring loaded terminal on the other, it makes perfect contact every time. These cell holders are mounted on a circuit board and plug-in directly to the cabinet’s interface.

Auto-Calibrator

The Auto-Calibrator (for use with 5 volt / 5 amp multi-range channels) verifies and calibrates current and voltage with a click of a button. The powerful Auto-Calibrator software lets you connect up to 96 channels at once, with appropriate cable sets, and calibrate with virtually no other intervention. Upon completion a calibration verification report is available and can be saved or printed.

Voltage Source

The MVC-95A Voltage Source is the tool used by our own support team to calibrate voltage. With an outout as high as 95 VDC it is perfect for most Maccor testers in the field.

Voltage range -95VDC to +95VDC with 0.5 mV increments up to 30 VDC and 1.5 mV increments for higher voltages.
